Usher Syndrome – October, 2021
History
A 14-year-old boy presented to clinic after referral from his optometrist for peripheral retinal pigmentary changes in both eyes. He also had vague complaints of worsening vision at both distance and near in both eyes. He had no eye pain, redness, trauma, flashes, floaters, or field loss. Review of systems was negative aside from needing hearing aids since he started elementary school. He had no significant past medical history, surgical history, or medication use. He had no family history of eye problems.
Exam
Vision was 20/30 in both eyes. IOP was 11 and 13. Confrontation visual fields were somewhat constricted bilaterally. Anterior exam of the both eyes was unremarkable. There was trace cell and beading fibrils in the anterior vitreous of both eyes.
Below were his initial imaging findings:

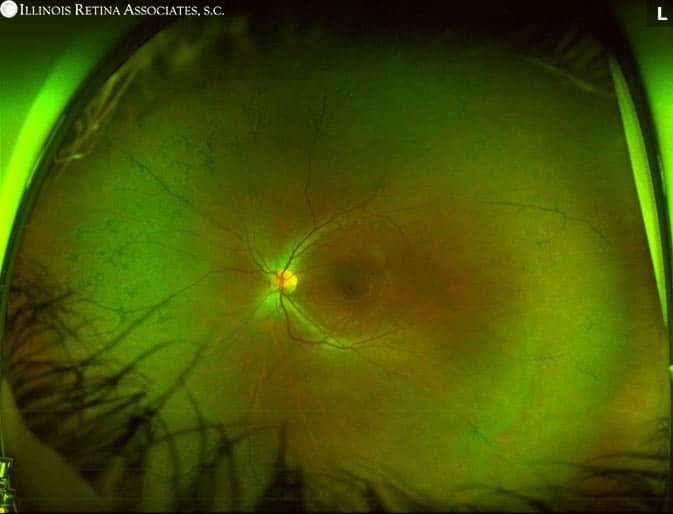

Fundus photos of both eyes show normal optic nerves with 0.1 cup-to-disc ratios. Macular exam revealed mildly blunted foveal reflexes and slightly attenuated vessels with peripheral “bone spicules.”
Based on abnormal findings on fundus exam, further imaging was completed. OCT and fundus autofluorescence of both eyes were obtained.

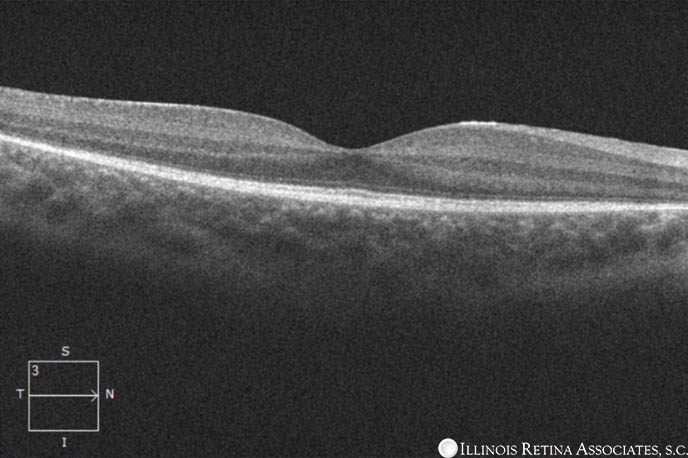

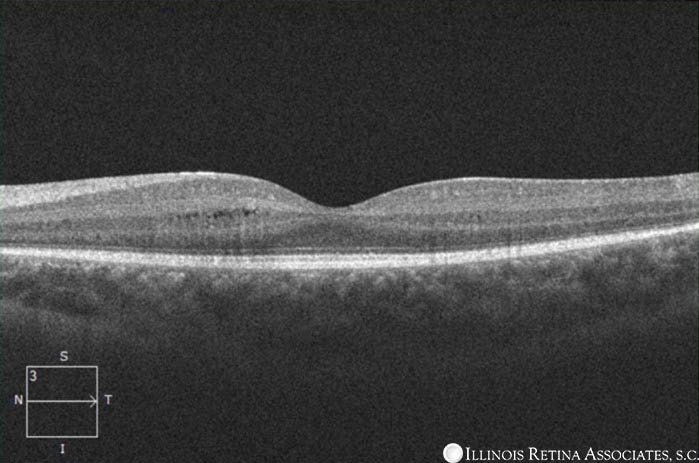

Optical coherence tomography of both eyes demonstrated very subtle cystic changes in the outer nuclear layer.

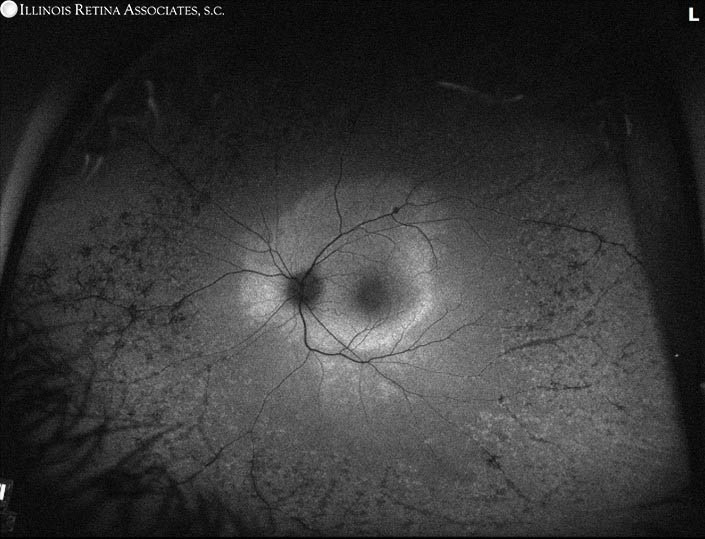

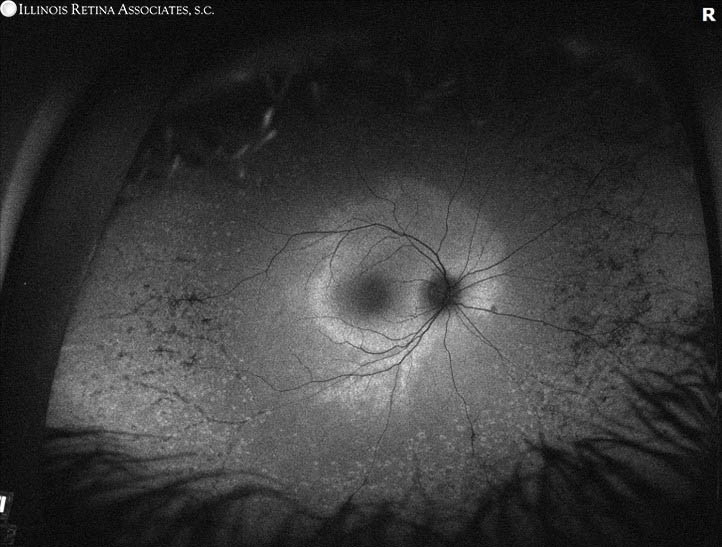

Ultra-widefield autofluorescence of both eyes showed marked hypo-autofluorescence of both parafoveal areas as well as a speckled pattern of hyper- and hypo-autofluorescence in the periphery.
Differential Diagnosis:
- Cystoid macular edema (CME) secondary to intermediate uveitis
- Susac syndrome
- Congenital syphilis
- Juvenile X-linked retinoschisis (JXLR)
- Retinitis pigmentosa, Usher variant
- Alport syndrome
- Bardet-Biedl syndrome
- Diffuse unilateral subacute neuroretinitis (DUSN)
The combination of hearing loss with retinal pathology flagged the serious, emergent diagnosis of Susac syndrome (a “must not miss” diagnosis). However, given the uncharacteristic slow, years-long onset, and lack of retinal vasculitis with Kyrieleis plaques, an MRI and MRA for cerebral vasculitis may be avoided. Alport syndrome and Bardet-Biedel syndrome are also among the diseases that may cause hearing loss with retinal pigmentary changes.
Lower on the differential are CME secondary to intermediate uveitis and JXLR, both of which are associated with cystic changes of the macula. However, without signs of inflammation and in the context of the peripheral pigmentary changes, the findings pointed more towards an inherited retinal disease.
The bone spicule changes peripherally are pathognomonic for retinitis pigmentosa, however syphilis (particularly congenital which can also cause hearing loss) and DUSN (usually unilateral) should also be considered.
Additional testing of Humphrey visual fields and full field ERG was ordered.

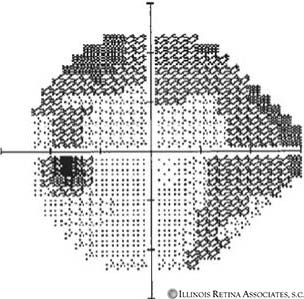

Humphrey visual field testing demonstrated ring scotomas of both eyes with superior deficits worse than inferior.

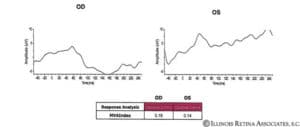

Full Field ERG demonstrated depressed responses of both eyes.
Genetic testing was ordered in light of these results, and a pathologic mutation was found in both alleles of USH2A, confirming the diagnosis of Usher Syndrome.
Discussion:
Usher Syndrome
Usher syndrome is an exceedingly rare disease with about 3 cases per 100,000 in the general population. It accounts for 5-10% of all congenital deafness, thus all deaf pediatric patients should have retinal screenings. People with heritages of Ashkenazi Jewish or French Acadian backgrounds are predisposed.
This retinitis pigmentosa variant affects stereocilia present in both the retina and cochleae of the ears. Usher syndrome is subclassified into subtypes I, II, and III depending on genotype and phenotypic symptoms. Type II, such as in our patient, presents with moderate hearing loss without vestibular dysfunction. All subtypes are at present incurable, but patients often benefit from cochlear implants.
There is currently a great deal of research and promise for new retinal gene therapies and Illinois Retina Associates is a referral center for enrollment in such clinical trials. In addition to gene therapy, there is also exciting work being done on use of deuterated vitamin A as a tool to inhibit vitamin A dimerization and halt progression of inherited retinal diseases. While we await FDA-approval of these possible new therapies, patients do benefit from regular visits with retinologists and for monitoring of addressable sequelae such as premature cataracts.
If you are looking to schedule your first consultation, please contact us today by clicking HERE and find the location that is nearest you!
References:
- Friedman TB, Schultz JM, Ahmed ZM, Tsilou ET, Brewer CC. Usher syndrome: hearing loss with vision loss. Adv Otorhinolaryngol. 2011;70:56-65.
- Mathur P, Yang J. Usher syndrome: Hearing loss, retinal degeneration and associated abnormalities. Biochim Biophys Acta. 2015;1852(3):406-20.
- Millán JM, Aller E, Jaijo T, Blanco-kelly F, Gimenez-pardo A, Ayuso C. An update on the genetics of usher syndrome. J Ophthalmol. 2011;2011:417217.
- Kimberling WJ, Hildebrand MS, Shearer AE, et al. Frequency of Usher syndrome in two pediatric populations: Implications for genetic screening of deaf and hard of hearing children. Genet Med. 2010;12(8):512-6.
- Vernon M. Usher’s syndrome–deafness and progressive blindness. Clinical cases, prevention, theory and literature survey. J Chronic Dis. 1969;22(3):133-51.
